In industry, we are most experienced with manufacturing quality assurance systems for the paper industry. We are also receiving increasingly more work regarding industry automation details, such as different-sized switchboards and casings for automatic assembly lines.

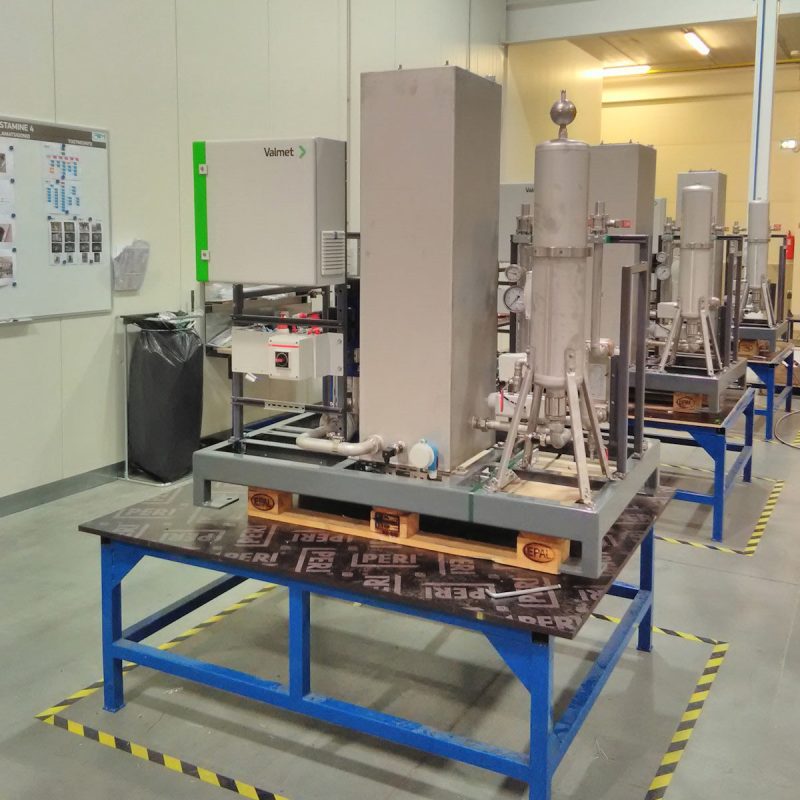

PUMPING STATIONS
Material: 1.0-3.0 mm SS304; pipes SS304, 1.0-5.0 mm S355
Dimensions: 2 m x 2 m x 2 m
Weight: up to 200 kg
Welding: processes 135 and 141
Testing: VT as agreed; functional testing, water pressure test (2.5 bar)
Surface finish: 100% acid bath, liquid paint class C3
Dimensions: 2 m x 2 m x 2 m
Weight: up to 200 kg
Welding: processes 135 and 141
Testing: VT as agreed; functional testing, water pressure test (2.5 bar)
Surface finish: 100% acid bath, liquid paint class C3

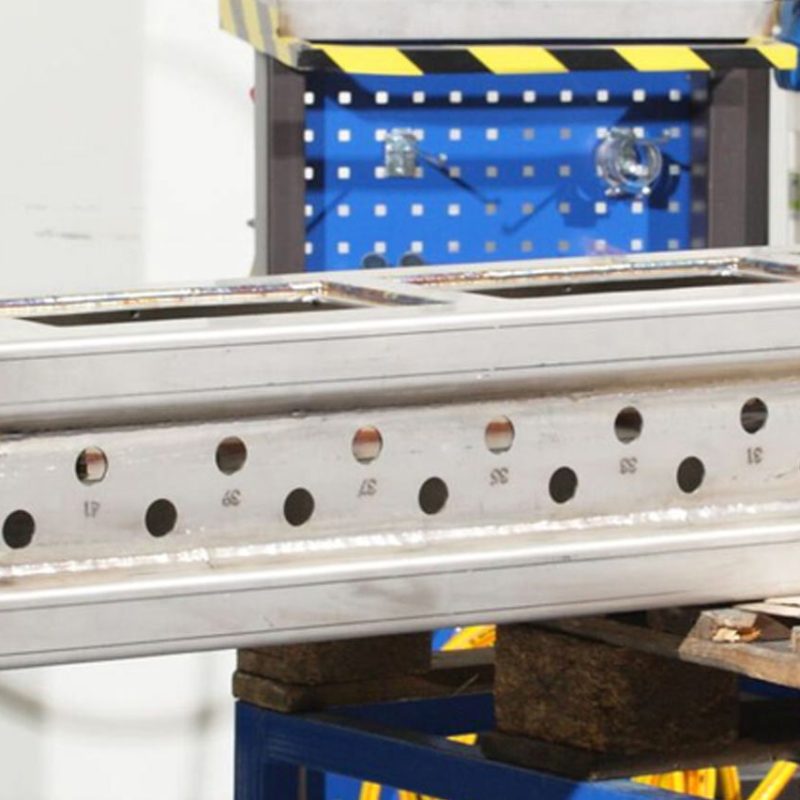

MOISTURISES
Material: 1.0-10.0 mm SS304; pipes SS304
Dimensions: 1 m x 1 m x 12 m
Weight: up to 1.5 tons
Welding: processes 135 and 141
Testing: VT as agreed; functional testing, water pressure test (2.5 bar)
Surface finish: 100% acid bath
Dimensions: 1 m x 1 m x 12 m
Weight: up to 1.5 tons
Welding: processes 135 and 141
Testing: VT as agreed; functional testing, water pressure test (2.5 bar)
Surface finish: 100% acid bath

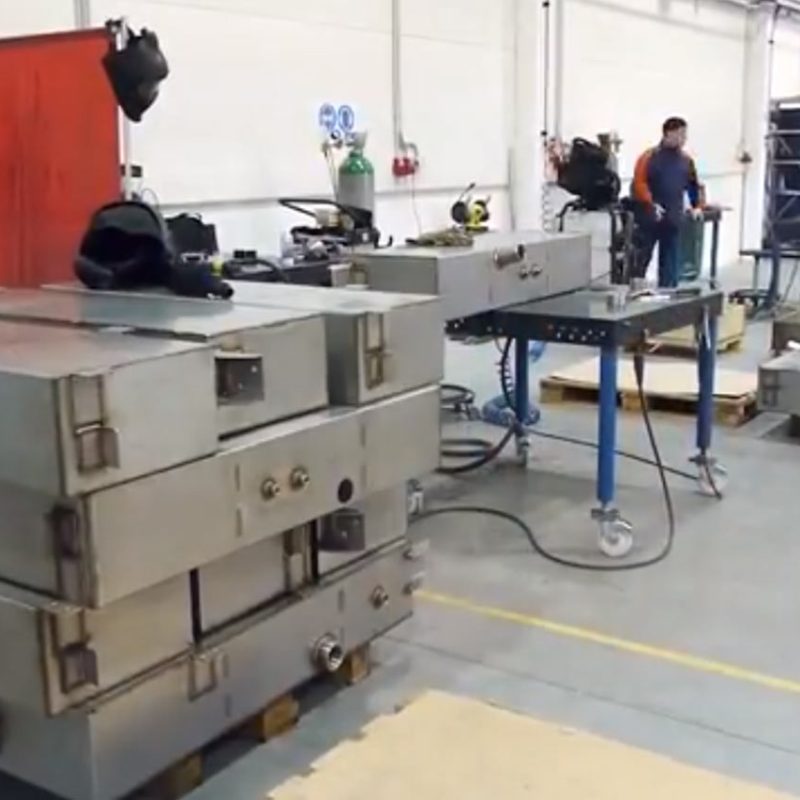

TANKS
Material: 1.0-3.0 mm SS304; pipes SS304
Dimensions: 1 m x 1 m x 2 m
Weight: up to 200 kg
Welding: processes 135 and 141
Testing: VT as agreed; water pressure test (2.5 bar)
Surface finish: 100% acid bath
Dimensions: 1 m x 1 m x 2 m
Weight: up to 200 kg
Welding: processes 135 and 141
Testing: VT as agreed; water pressure test (2.5 bar)
Surface finish: 100% acid bath

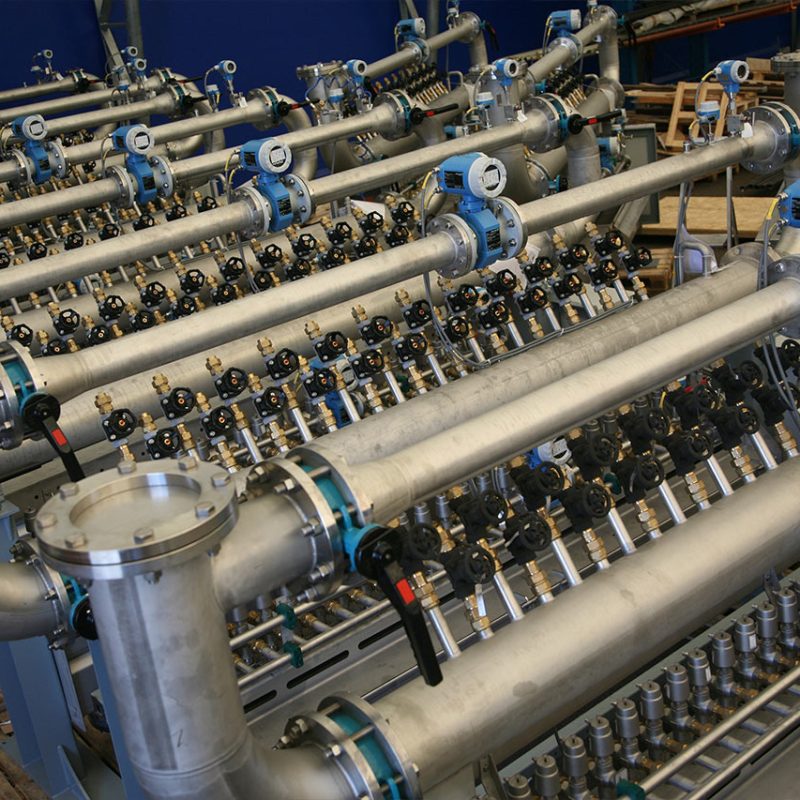

COOLING EQUIPMENT
Material: 1.0-12.0 mm SS304; pipes SS304, 1.0-12.0 mm S355
Dimensions: 2 m x 2 m x 12 m
Weight: up to 1.5 tons
Welding: processes 135 and 141
Testing: VT as agreed; functional testing, water pressure test (2.5 bar)
Surface finish: 100% acid bath, liquid paint class C3
Dimensions: 2 m x 2 m x 12 m
Weight: up to 1.5 tons
Welding: processes 135 and 141
Testing: VT as agreed; functional testing, water pressure test (2.5 bar)
Surface finish: 100% acid bath, liquid paint class C3

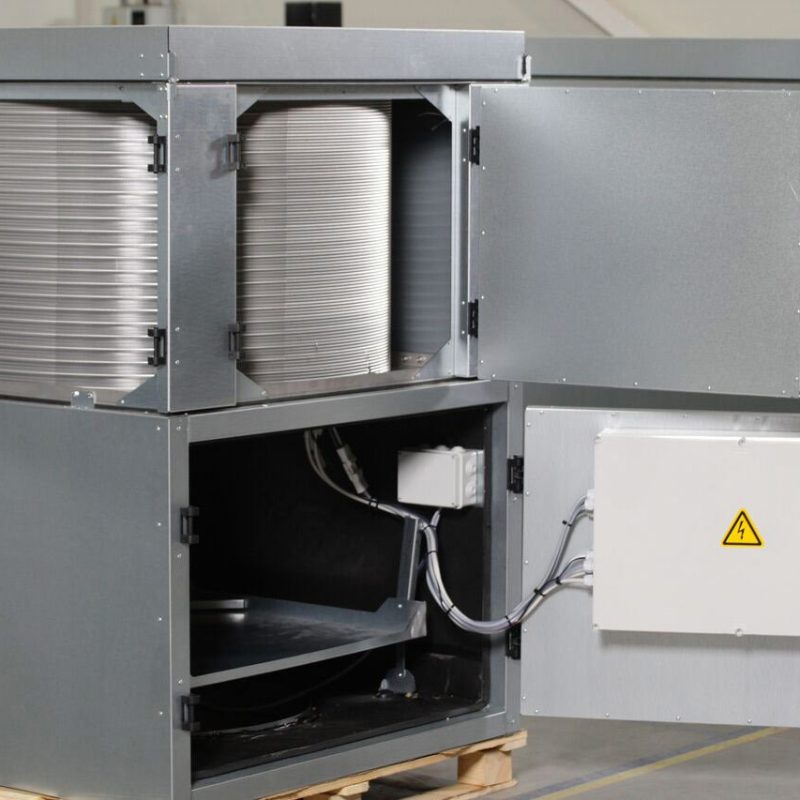

VENTILATION EQUIPMENT
Material: 1.0-3.0 mm SS304; 1.0-3.0 mm zinc plated steel Zn275
Dimensions: 2 m x 2 m x 2 m
Weight: up to 200 kg
Welding: processes 135 and 141
Testing: functional test
Surface finish: 100% smooth zinc plated surface
Dimensions: 2 m x 2 m x 2 m
Weight: up to 200 kg
Welding: processes 135 and 141
Testing: functional test
Surface finish: 100% smooth zinc plated surface

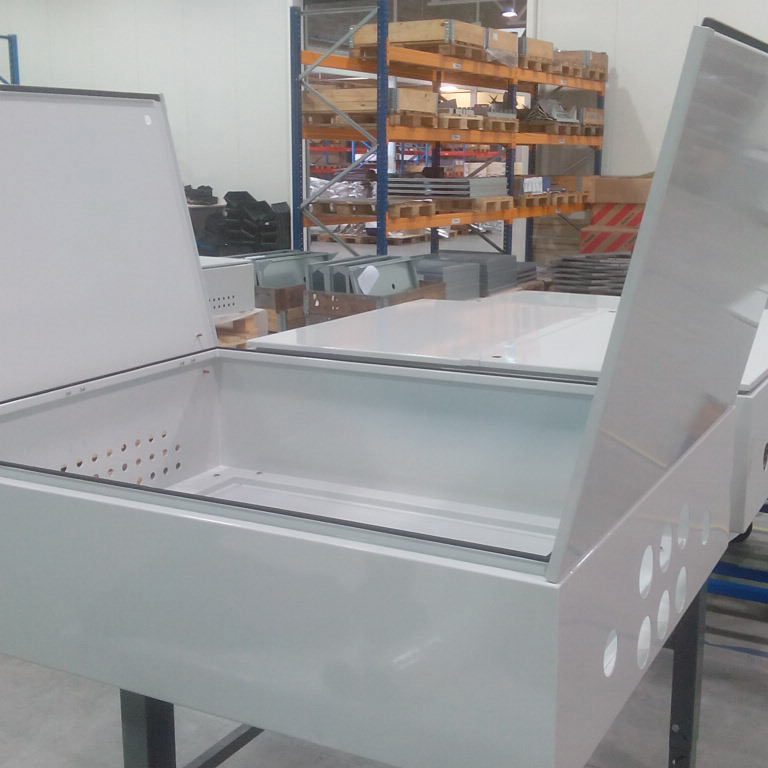

SWITCHBOARDS
Material: 1.0-3.0 mm S235
Dimensions: 2 m x 2 m x 2 m
Weight: up to 100 kg
Welding: processes 135 and 141
Testing: functional test
Surface finish: liquid paint (C2) or powder paint C2
Dimensions: 2 m x 2 m x 2 m
Weight: up to 100 kg
Welding: processes 135 and 141
Testing: functional test
Surface finish: liquid paint (C2) or powder paint C2

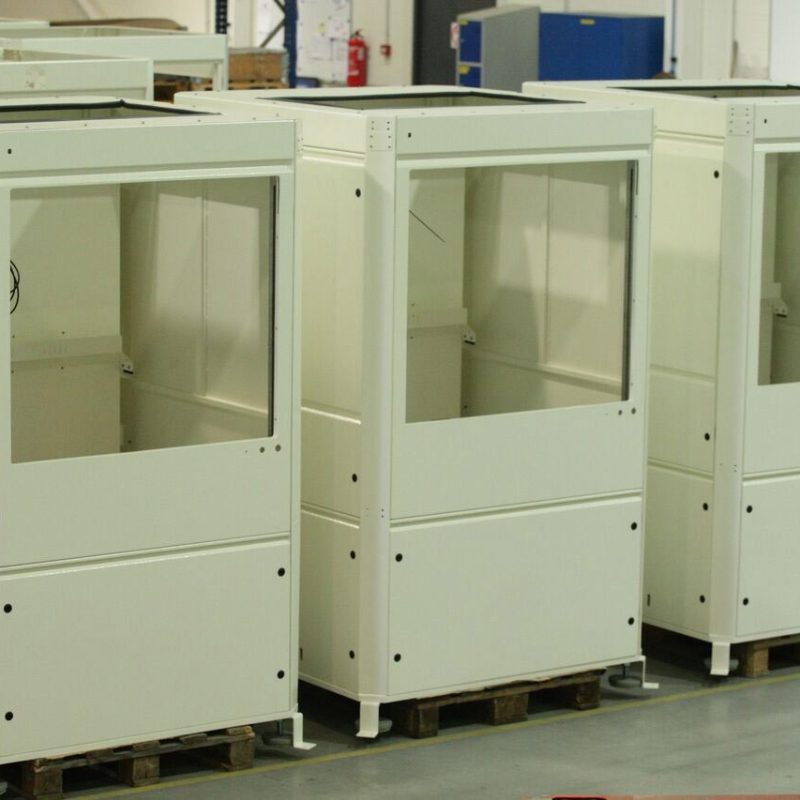

ASSEMBLIES FOR AUTOMATIC ASSEMBLY LINES
Material: 1.5 -3.0 mm zinc plated steel Zn275
Dimensions: 3 m x 2 m
Weight: up to 100 kg
Welding: –
Testing: functional test
Surface finish: no-damage surface
Dimensions: 3 m x 2 m
Weight: up to 100 kg
Welding: –
Testing: functional test
Surface finish: no-damage surface

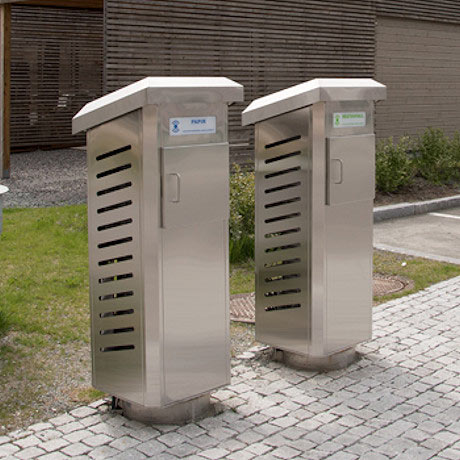

WASTE HANDLING
Material: 1.0-3.0 mm S235
Dimensions: 2 m x 2 m x 2 m
Weight: up to 100 kg
Welding: processes 135 and 141
Testing: functional test
Surface finish: liquid paint (C2) or powder paint C2
Dimensions: 2 m x 2 m x 2 m
Weight: up to 100 kg
Welding: processes 135 and 141
Testing: functional test
Surface finish: liquid paint (C2) or powder paint C2
